Control Panel

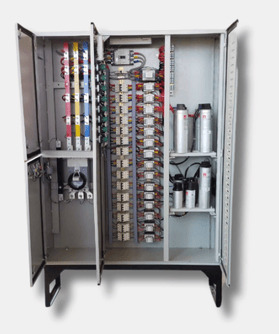

• Application
• Power Factor Correction in Industrial and Commercial Installations

• Base Material
• Other, MS Sheet Metal

• Cabinet Material
• Mild Steel

• Components
• Capacitor Banks, Contactors, MCB/MCCB, Harmonic Filters, APFC Relay, CTs, Indication Lamps, Busbars

• Connectivity Type
• Terminal Block

• Control System
• Microprocessor Based

• Cooling System
• Natural Air Cooling

• Cover Material
• Other, Powder Coated MS

• Current Rating
• 630A

• Dimension (L*W*H)
• 1800x1200x400 mm

• Display Type
• Other, LED Digital Display

• Features
• Auto/Manual Operation, Over/Under Voltage Protection, Easy Maintenance, Modular Construction

• Frequency (MHz)
• 50 Hz

• IP Rating
• Ip54

• Material
• Mild Steel

• Maximum Output Current
• 630A

• Operating Voltage
• 415V AC

• Panel Type
• Floor Mounted

• Product Type
• Other, Automatic Power Factor Correction (APFC) Panel

• Protection Class
• Class I

• Protection Level
• IP54

• Rated Current
• 630A

• Rated Insulation Voltage
• 690V

• Rated Operation Voltage
• 415V

• Rated Voltage
• 415V AC

• Standard
• IEC 61439

• Surface Color
• Other, Grey

• Surface Finish
• Powder Coated

• Thickness
• 2 mm

• Way
• Three Phase

• Application
• Industrial/Commercial Power Distribution

• Base Material
• Mild Steel

• Cabinet Material
• CRCA Sheet Steel

• Components
• Automatic Transfer Switch (ATS), MCCB, MCB, busbar system, Digital/Analog meters, selector switches, indicator lamps

• Connectivity Type
• Wired

• Control System
• Microprocessor-based ATS Controller

• Cooling System
• Natural Air Ventilation

• Cover Material
• Other, Tempered Glass/Steel

• Current Rating
• 200A - 630A

• Dimension (L*W*H)
• 1200mm x 800mm x 300mm (customizable)

• Display Type
• Other, LED/Analog Meter

• Features
• Auto/manual mode selection, phase sequence correction, over/under voltage and frequency protection, emergency stop, robust construction

• Frequency (MHz)
• 50 Hz

• IP Rating
• Ip54

• Material
• Other, Mild Steel (MS)

• Maximum Output Current
• 630A

• Operating Voltage
• 415V

• Panel Type
• Automatic Transfer Switch cum Distribution

• Product Type
• Other, ATS cum Distribution Panel

• Protection Class
• Class I

• Protection Level
• IP54

• Rated Current
• Up to 630A

• Rated Insulation Voltage
• 690V

• Rated Operation Voltage
• 415V

• Rated Voltage
• 415V AC

• Standard
• IEC 61439 / IS 8623

• Surface Color
• Other, Grey

• Surface Finish
• Powder Coated

• Thickness
• 1.6mm - 2mm

• Way
• 3 Phase, 4 Wire

• Application
• Industrial, Commercial, Data Centers, Hospitals, Residential Buildings

• Base Material
• Other, CRCA Sheet Steel

• Cabinet Material
• Steel

• Components
• Automatic Transfer Switch, MCCB, Contactor, Indicating Lamps, Meters, Push Buttons

• Connectivity Type
• Hardwired

• Control System
• Microprocessor Based

• Cooling System
• Natural Air Ventilation

• Cover Material
• Other, CRCA Sheet Steel

• Current Rating
• 800A

• Dimension (L*W*H)
• Customizable

• Display Type
• Other, LED Indication & Digital Meter

• Features
• Auto/Manual operation, Emergency stop, Phase sequence protection, Overload & Short circuit protection

• Frequency (MHz)
• 50 Hz

• IP Rating
• Ip54

• Material
• Other, CRCA Sheet Steel

• Maximum Output Current
• 800A

• Operating Voltage
• 415V

• Panel Type
• Floor Mounted

• Product Type
• Other, Automatic Transfer Switch Panel (ATS Panel)

• Protection Class
• Class I

• Protection Level
• IP54

• Rated Current
• Up to 800A

• Rated Insulation Voltage
• 660V

• Rated Operation Voltage
• 415V AC

• Rated Voltage
• 415V AC

• Standard
• IEC 60947, IS 8623

• Surface Color
• Other, Siemens Grey

• Surface Finish
• Powder Coated

• Thickness
• 1.6 - 2.0 mm

• Way
• Custom as per requirement

• Application
• Industrial Power Factor Correction

• Base Material
• Other, Mild Steel Sheet

• Cabinet Material
• CRCA Sheet Metal

• Components
• Capacitor banks, APFC relay, MCB/MCCB, Contactor, Busbar, Fuses, Indicator Lamps, Auxiliary Devices

• Connectivity Type
• Wired

• Control System
• Automatic with Microprocessor based Controller

• Cooling System
• Natural Air Ventilation

• Cover Material
• Other, Mild Steel with Powder Coating

• Current Rating
• Up to 630A

• Dimension (L*W*H)
• Customizable as per requirement

• Display Type
• Other, LED Digital Display

• Features
• Heavy-duty construction, High reliability, Easy installation, Low maintenance

• Frequency (MHz)
• 50 Hz

• IP Rating
• Other, IP42 / IP54

• Material
• Other, Mild Steel (MS)

• Maximum Output Current
• 630A

• Operating Voltage
• 415 V AC

• Panel Type
• Floor Mounted

• Product Type
• Other, Automatic Power Factor Correction (APFC) Panel

• Protection Class
• Class 1

• Protection Level
• Other, IP42 / IP54

• Rated Current
• 250A

• Rated Insulation Voltage
• 690 V

• Rated Operation Voltage
• 415 V

• Rated Voltage
• 415 V AC

• Standard
• IS: 8623 / IEC 60439

• Surface Color
• Other, Grey

• Surface Finish
• Powder Coated

• Thickness
• 1.6mm - 2mm

• Way
• 3 Phase

• Application
• Residential, Commercial & Industrial Power Distribution

• Base Material
• Other, CRCA Sheet Steel

• Cabinet Material
• Steel

• Components
• Busbar, Neutral Link, Earth Link, Movable Hinged Door

• Connectivity Type
• Hardwired

• Control System
• Manual

• Cooling System
• Natural Air Cooling

• Cover Material
• Other, Powder Coated GI Sheet

• Current Rating
• Up to 100A

• Dimension (L*W*H)
• Custom/Standard as per requirement

• Features
• Corrosion Resistant, Pre-punched Knockouts, Wall Mountable

• Frequency (MHz)
• 50 Hz

• IP Rating
• Other, IP42 / IP54

• Material
• Other, Cold Rolled Steel Sheet

• Maximum Output Current
• 100A

• Operating Voltage
• 415V AC

• Panel Type
• Double Door / Single Door

• Product Type
• Other, Distribution Board Panel

• Protection Class
• Class I

• Protection Level
• Other, IP42 / IP54

• Rated Current
• 100A Max

• Rated Insulation Voltage
• 660V

• Rated Operation Voltage
• 415 V

• Rated Voltage
• 415V AC

• Standard
• IEC 61439-1&2 / IS 8623

• Surface Color
• Other, RAL 7035 (Light Grey)

• Surface Finish
• Powder Coated

• Thickness
• 1.2 mm - 1.6 mm

• Way
• 4 Way / 6 Way / 8 Way/ 12 Way (Available)

• Application
• Industrial/Commercial Power Distribution

• Base Material
• Mild Steel

• Cabinet Material
• Sheet Metal

• Components
• MCB, MCCB, Busbar, Neutral Link

• Connectivity Type
• Hardwired

• Control System
• Manual Switches

• Cooling System
• Natural Air Ventilation

• Cover Material
• Other, Mild Steel with Powder Coating

• Current Rating
• 100A, 200A, 400A options

• Dimension (L*W*H)
• 800 x 600 x 250 mm

• Features
• Robust Construction, Easy Installation, Corrosion Resistant

• Frequency (MHz)
• 50 Hz

• IP Rating
• Other, IP42

• Material
• Other, Mild Steel (MS)

• Maximum Output Current
• 400 A

• Operating Voltage
• 415 V AC

• Panel Type
• Wall Mounted

• Product Type
• Other, Distribution Panel

• Protection Class
• Class I

• Protection Level
• Other, Medium to High

• Rated Current
• Up to 400A

• Rated Insulation Voltage
• 660 V

• Rated Operation Voltage
• 415 V

• Rated Voltage
• 415 V AC

• Standard
• IEC 61439, IS 8623

• Surface Color
• Other, Grey

• Surface Finish
• Powder Coated

• Thickness
• 1.6 mm

• Way
• 4 Way to 12 Way

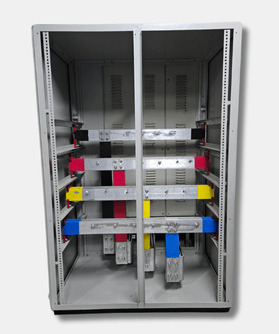

• Application
• Electrical Panels, Switchgears, Distribution Boards

• Base Material
• Other, Copper/Aluminum Base

• Cabinet Material
• MS/CRCA Steel

• Components
• Busbar, Insulating Cover

• Connectivity Type
• Screw/Clamp Connection

• Control System
• Manual/Electrical

• Cooling System
• Natural Air Cooled

• Cover Material
• Other, Polycarbonate/ABS

• Current Rating
• Up to 250A

• Dimension (L*W*H)
• Customized (e.g. 1000mm x 40mm x 3mm)

• Features
• Anti-corrosive, Easy Mounting, Fire Retardant

• Frequency (MHz)
• 50/60 Hz

• IP Rating
• Other, IP42/IP54

• Material
• Other, Copper/Aluminum

• Maximum Output Current
• 250A

• Operating Voltage
• 415V AC

• Panel Type
• Power Distribution Panel

• Product Type
• Other, Extended Busbar

• Protection Class
• Class 1

• Protection Level
• Other, IP42/IP54

• Rated Current
• 100A - 250A

• Rated Insulation Voltage
• 1000V

• Rated Operation Voltage
• 415V AC

• Rated Voltage
• 690V AC

• Standard
• IEC 61439 / IS: 8623

• Surface Color
• Other, Silver Grey

• Surface Finish
• Other, Electro Tin/ Silver Plated

• Thickness
• 3 mm

• Way
• Single/Multiple Way

• Application
• Electrical Distribution

• Base Material
• Mild Steel

• Cabinet Material
• Mild Steel

• Components
• MCB, MCCB, Busbar, Meter, Indicator Lamps

• Connectivity Type
• Hardwired

• Control System
• Manual / Automatic

• Cooling System
• Natural Air Cooling

• Cover Material
• Other, Mild Steel with Powder Coating

• Current Rating
• 800A

• Dimension (L*W*H)
• 1200 mm x 1000 mm x 400 mm

• Display Type
• Other, Analog / Digital Meter

• Features
• Weatherproof, Corrosion Resistant, Sturdy Construction

• Frequency (MHz)
• 50 Hz

• IP Rating
• Ip54

• Material
• Mild Steel

• Maximum Output Current
• 800A

• Operating Voltage
• 415V AC

• Panel Type
• Outdoor Type

• Product Type
• Other, Fidder Piller Panel

• Protection Class
• Class 1

• Protection Level
• IP54

• Rated Current
• 800A

• Rated Insulation Voltage
• 690V AC

• Rated Operation Voltage
• 415V AC

• Rated Voltage
• 415V AC

• Standard
• IEC 61439 / IS 8623

• Surface Color
• Other, Grey

• Surface Finish
• Powder Coated

• Thickness
• 2 mm

• Way
• Multiple ways (customizable)

• Application
• Fire Hydrant & Sprinkler Pump Automation

• Base Material
• Mild Steel

• Cabinet Material
• CRCA Sheet Steel

• Components
• ACB, MCCB, Contactors, Overload Relay, Indicating Lamps, Digital/Analog Meters

• Connectivity Type
• Terminal Connection

• Control System
• Automatic/Manual Start-Stop

• Cooling System
• Natural Air Cooled

• Cover Material
• Other, Powder Coated Steel

• Current Rating
• Up to 630A

• Dimension (L*W*H)
• Customizable as per project requirement

• Display Type
• Other, Analog & Digital (Selectable)

• Features
• Short Circuit & Overload Protection, Auto/Manual Transfer, Emergency Stop

• Frequency (MHz)
• 50 Hz

• IP Rating
• Other, IP42 / IP54

• Material
• Other, Mild Steel Sheet (CRCA)

• Maximum Output Current
• Up to 630A

• Operating Voltage
• 415V AC

• Panel Type
• Automatic/Manual Fire Pump Panel

• Product Type
• Other, Fire Pump Control Panel

• Protection Class
• Class I

• Protection Level
• Other, Up to IP54

• Rated Current
• Up to 630A

• Rated Insulation Voltage
• 660V AC

• Rated Operation Voltage
• 415V AC

• Rated Voltage
• 415V AC

• Standard
• IS 8623 / IEC 61439

• Surface Color
• Other, Red (Powder Coated)

• Surface Finish
• Other, Epoxy Polyester Powder Coated

• Thickness
• 1.6 mm - 2.0 mm

• Way
• 3 Way/4 Way/Customized

• Application
• Industrial Motor Control

• Base Material
• Mild Steel

• Cabinet Material
• Powder-Coated Mild Steel

• Components
• Air Circuit Breakers, Contactors, Overload Relays, MCCBs, Switches, Indicators

• Connectivity Type
• Cable Entry Top/Bottom

• Control System
• Manual/Automatic

• Cooling System
• Natural/Forced Air Ventilation

• Cover Material
• Other, Mild Steel with Powder Coating

• Current Rating
• Upto 1600A

• Dimension (L*W*H)
• As per client requirement / Customizable

• Display Type
• Other, Analog/LED Indicating Lights

• Features
• Modular construction, High reliability, Fully compartmentalized, Easy maintenance

• Frequency (MHz)
• 50 Hz

• IP Rating
• Other, IP55

• Material
• Other, Mild Steel (MS)

• Maximum Output Current
• 1600A

• Operating Voltage
• 380-415V AC

• Panel Type
• Floor Mounted

• Product Type
• Other, MCC Panel

• Protection Class
• Class I

• Protection Level
• IP55

• Rated Current
• Upto 1600A

• Rated Insulation Voltage
• 660V

• Rated Operation Voltage
• 415V AC

• Rated Voltage
• 415V AC

• Standard
• IEC 61439-1/2, IS 8623

• Surface Color
• Other, Siemens Grey

• Surface Finish
• Powder Coated

• Thickness
• 2 mm

• Way
• Multi Way

• Application
• Power Distribution for Residential & Commercial

• Base Material
• Other, Mild Steel Sheet

• Cabinet Material
• Cold Rolled Mild Steel

• Components
• Energy Meter, MCB/MCCB, Busbar, Indicator Lamp

• Connectivity Type
• Hardwired

• Control System
• Manual

• Cooling System
• Natural Air Cooling

• Cover Material
• Other, Mild Steel Sheet / Powder-Coated Steel

• Current Rating
• 250A Max

• Dimension (L*W*H)
• 900mm x 800mm x 250mm (Customizable)

• Display Type
• Other, Analog/Digital Meter Compatible

• Features
• Compact design, easy installation, corrosion resistant, lockable door

• Frequency (MHz)
• 50 Hz

• IP Rating
• Ip54

• Material
• Mild Steel

• Maximum Output Current
• 250A

• Operating Voltage
• 415V AC

• Panel Type
• Wall Mounted

• Product Type
• Other, Meter Distribution Panel

• Protection Class
• Class I

• Protection Level
• IP54

• Rated Current
• 125A - 250A

• Rated Insulation Voltage
• 660V

• Rated Operation Voltage
• 415V AC

• Rated Voltage
• 415V AC

• Standard
• IEC 61439 / IS 8623

• Surface Color
• Other, Grey

• Surface Finish
• Powder Coated

• Thickness
• 1.6 mm - 2.0 mm

• Way
• 4 Way - 12 Way

• Application
• Industrial Metering, Power Distribution

• Base Material
• Other, Galvanized Iron

• Cabinet Material
• Mild Steel

• Components
• MCB, MCCB, Energy Meter, Busbar, Indicator Lights

• Connectivity Type
• Wired

• Control System
• Manual

• Cooling System
• Natural Air Cooling

• Cover Material
• Other, Mild Steel Sheet

• Current Rating
• 125 A

• Dimension (L*W*H)
• 1200 mm x 900 mm x 300 mm

• Display Type
• Other, Analog/Digital

• Features
• Weatherproof, Wall Mounted, Rust Resistant, Tamper Proof

• Frequency (MHz)
• 50 Hz

• IP Rating
• Ip54

• Material
• Mild Steel

• Maximum Output Current
• 250 A

• Operating Voltage
• 230-415 V AC

• Panel Type
• Outdoor

• Product Type
• Other, Meter Panel Board

• Protection Class
• Class I

• Protection Level
• IP54

• Rated Current
• 125 A

• Rated Insulation Voltage
• 660 V

• Rated Operation Voltage
• 415 V AC

• Rated Voltage
• 415 V

• Standard
• IS 8623, IEC 61439

• Surface Color
• Other, Grey

• Surface Finish
• Powder Coated

• Thickness
• 1.6 mm

• Way
• 4 Way

• Application
• Outdoor Power Distribution

• Base Material
• Mild Steel

• Cabinet Material
• Mild Steel

• Components
• MCB, MCCB, Contactors, Indication Lamps

• Connectivity Type
• Hard Wired

• Control System
• Manual/Automatic

• Cooling System
• Natural Air Ventilation

• Cover Material
• Other, Toughened Glass

• Current Rating
• 630A

• Dimension (L*W*H)
• 1200 x 800 x 400 mm (Typical)

• Display Type
• Other, LED Indicator

• Features
• Weatherproof, Corrosion Resistant, Lockable Door, Easy Installation

• Frequency (MHz)
• 50 Hz

• IP Rating
• Other, IP65

• Material
• Other, Mild Steel (MS)

• Maximum Output Current
• 630A

• Operating Voltage
• 380-415V

• Panel Type
• Outdoor Weatherproof

• Product Type
• Other, Outdoor Distribution Panel

• Protection Class
• Class I

• Protection Level
• IP65

• Rated Current
• 630A

• Rated Insulation Voltage
• 690V

• Rated Operation Voltage
• 415V

• Rated Voltage
• 415V AC

• Standard
• IEC 61439, IS 8623

• Surface Color
• Other, Grey

• Surface Finish
• Powder Coated

• Thickness
• 1.6 mm

• Way
• 2 Way / Customized

• Application
• Industrial Power Distribution

• Base Material
• Mild Steel

• Cabinet Material
• Mild Steel

• Components
• MCB, MCCB, ACB, Indicators, Busbars, Meters

• Connectivity Type
• Hardwired

• Control System
• Manual / Automatic

• Cooling System
• Natural / Forced Air

• Cover Material
• Other, Mild Steel with Powder Coating

• Current Rating
• 2500A

• Dimension (L*W*H)
• Customizable

• Display Type
• Other, Analog / Digital

• Features
• Shock Proof, Corrosion Resistant, Durable

• Frequency (MHz)
• 50 Hz

• IP Rating
• Other, IP42 / IP54

• Material
• Other, Mild Steel (MS)

• Maximum Output Current
• 2500A

• Operating Voltage
• 415V

• Panel Type
• Floor Mounted

• Product Type
• Other, Power Control Center (PCC) Panel

• Protection Class
• Class I

• Protection Level
• Other, IP42 / IP54

• Rated Current
• Up to 2500A

• Rated Insulation Voltage
• 660V

• Rated Operation Voltage
• 415V AC

• Rated Voltage
• 415V AC

• Standard
• IEC 61439, IS 8623

• Surface Color
• Other, Grey

• Surface Finish
• Powder Coated

• Thickness
• 1.6 mm to 2.0 mm

• Way
• Single/Double Front

• Application
• Electrical panel, circuit breaker isolation

• Base Material
• Other, Polyamide

• Components
• Shackle, Body, Locking Mechanism

• Connectivity Type
• Mechanical

• Control System
• Manual

• Cover Material
• Other, Polycarbonate

• Current Rating
• 32A

• Dimension (L*W*H)
• 120 mm x 50 mm x 25 mm

• Display Type
• Other, Label/Sticker

• Features
• Corrosion resistant, tamper proof, easy installation

• Frequency (MHz)
• 50-60

• IP Rating
• Ip54

• Material
• Other, High-grade polyamide plastic

• Maximum Output Current
• 32A

• Operating Voltage
• 415V AC

• Panel Type
• Non-metallic enclosure

• Product Type
• Other, Safety Device (Lockout Tagout)

• Protection Class
• Class II

• Protection Level
• Other, High

• Rated Current
• 32A

• Rated Insulation Voltage
• 690V

• Rated Operation Voltage
• 415V AC

• Rated Voltage
• 415V AC

• Standard
• IEC 60269, IS/IEC 60947

• Surface Color
• Other, Red & Yellow

• Surface Finish
• Other, Glossy

• Thickness
• 4 mm

• Way
• Single way

• Application
• Domestic and Commercial Electrical Fittings

• Base Material
• Other, Polycarbonate

• Components
• Socket, Switch

• Connectivity Type
• Wired

• Control System
• Manual

• Cover Material
• Other, ABS Plastic

• Current Rating
• 16A

• Dimension (L*W*H)
• 120mm x 75mm x 40mm

• Features
• Shock Proof, Fire Retardant, Durable

• Frequency (MHz)
• 50/60 Hz

• IP Rating
• Other, IP20

• Material
• Other, Polycarbonate (PC) and ABS plastic

• Maximum Output Current
• 16A

• Operating Voltage
• 220-250V AC

• Panel Type
• Modular

• Product Type
• Other, Electrical Socket Panel

• Protection Class
• Class I

• Protection Level
• Other, IP20

• Rated Current
• 6A, 16A

• Rated Insulation Voltage
• 660V AC

• Rated Operation Voltage
• 250V

• Rated Voltage
• 250V AC

• Standard
• IS 1293:2019 / IEC 60884-1

• Surface Color
• White

• Surface Finish
• Other, Glossy

• Thickness
• 3 mm

• Way
• 2 Way

• Application
• Street Lighting Control

• Base Material
• Other, Mild Steel Sheet

• Cabinet Material
• MS Sheet

• Components
• MCB, Contactors, Timer, Terminal Blocks

• Connectivity Type
• Hard Wired

• Control System
• Automatic Timer/Manual Switch

• Cooling System
• Natural Air Cooling

• Cover Material
• Other, Powder Coated MS

• Current Rating
• 40A

• Dimension (L*W*H)
• 500mm x 400mm x 200mm

• Display Type
• Other, Analog/None

• Features
• Corrosion Resistant, Weatherproof, Easy Installation

• Frequency (MHz)
• 50/60 Hz

• IP Rating
• Other, IP55

• Material
• Other, Mild Steel (MS)

• Maximum Output Current
• 63A

• Operating Voltage
• 230V - 415V

• Panel Type
• Outdoor

• Product Type
• Other, Street Light Panel

• Protection Class
• Class I

• Protection Level
• IP55

• Rated Current
• 40A

• Rated Insulation Voltage
• 690V

• Rated Operation Voltage
• 415V

• Rated Voltage
• 415V AC

• Standard
• IEC 61439

• Surface Color
• Other, Grey

• Surface Finish
• Powder Coated

• Thickness
• 1.6 mm

• Way
• 4 Way

• Application
• Industrial temperature regulation

• Base Material
• Mild Steel

• Cabinet Material
• Mild Steel

• Components
• MCB, Temperature Controller, Contactor, Indicating Lamps, Terminal Blocks

• Connectivity Type
• Wired, Optional Ethernet/RS485

• Control System
• Microprocessor based / PLC based (as required)

• Cooling System
• Natural / Forced Air Cooling

• Cover Material
• Other, Mild Steel with Powder Coating

• Current Rating
• 100 A

• Dimension (L*W*H)
• 600 x 500 x 200 mm

• Display Type
• Digital

• Features
• Automatic temperature control, overload protection, user friendly interface

• Frequency (MHz)
• 50 Hz

• IP Rating
• Other, IP55

• Material
• Mild Steel

• Maximum Output Current
• 100 A

• Operating Voltage
• 415 V AC

• Panel Type
• Wall Mounted

• Product Type
• Other, Temperature Control Panel

• Protection Class
• Class I

• Protection Level
• IP55

• Rated Current
• 100 A

• Rated Insulation Voltage
• 690 V

• Rated Operation Voltage
• 415 V

• Rated Voltage
• 415 V AC

• Standard
• IEC 61439

• Surface Color
• Other, Grey

• Surface Finish
• Powder Coated

• Thickness
• 2 mm

• Way
• Single/Multiple Way (Configurable)

• Application
• Construction Sites, Temporary Power Distribution

• Base Material
• Other, Mild Steel Sheet

• Cabinet Material
• Mild Steel

• Components
• MCBs, RCCB, Terminal Blocks

• Connectivity Type
• Cable Entry Top/Bottom

• Control System
• Manual

• Cooling System
• Natural Air Cooling

• Cover Material
• Other, Powder Coated Steel

• Current Rating
• 100A

• Dimension (L*W*H)
• 600 mm x 450 mm x 250 mm

• Display Type
• Other, Analog Meter

• Features
• Portable, Easy Installation, Rust Resistant, Weather Proof

• Frequency (MHz)
• 50/60 Hz

• IP Rating
• Ip44

• Material
• Mild Steel

• Maximum Output Current
• 100A

• Operating Voltage
• 415 V

• Panel Type
• Outdoor / Indoor

• Product Type
• Other, Temporary Distribution Board

• Protection Class
• Class I

• Protection Level
• Other, IP 44

• Rated Current
• 100A

• Rated Insulation Voltage
• 660 V

• Rated Operation Voltage
• 415 V

• Rated Voltage
• 415 V

• Standard
• IS Standard

• Surface Color
• Other, Grey

• Surface Finish
• Powder Coated

• Thickness
• 1.6 mm

• Way
• 4 Way

• Application
• Industrial, Automation, Street Lighting

• Base Material
• Mild Steel

• Cabinet Material
• Powder Coated Mild Steel

• Components
• Timer Relay, MCB, Contactor, Indication Lamps

• Connectivity Type
• Hardwired

• Control System
• Electromechanical/ Digital Timer Based

• Cooling System
• Natural Air Cooling

• Cover Material
• Other, MS with powder coating

• Current Rating
• 32A

• Dimension (L*W*H)
• 450 x 300 x 150 mm

• Display Type
• Other, Analog/ Digital

• Features
• Automatic ON/OFF, Adjustable Time Settings, LED Status Indicator

• Frequency (MHz)
• 50Hz

• IP Rating
• Ip54

• Material
• Other, Mild Steel (MS)

• Maximum Output Current
• 32A

• Operating Voltage
• 230V AC

• Panel Type
• Wall Mounted

• Product Type
• Other, Digital Timer Control Panel

• Protection Class
• Class I

• Protection Level
• IP54

• Rated Current
• 32A

• Rated Insulation Voltage
• 690V

• Rated Operation Voltage
• 230V AC

• Rated Voltage
• 230V AC

• Standard
• IS/IEC 60947-1

• Surface Color
• Other, Grey

• Surface Finish
• Powder Coated

• Thickness
• 1.6 mm

• Way
• Single Way

• Application
• Industrial Automation

• Base Material
• Mild Steel

• Cabinet Material
• Mild Steel

• Components
• MCB, MCCB, Contactor, Overload Relay, Timer, Busbar

• Connectivity Type
• Hardwired

• Control System
• Automatic / Manual

• Cooling System
• Natural Air Cooling

• Cover Material
• Mild Steel

• Current Rating
• 1000A

• Dimension (L*W*H)
• 2000mm x 1200mm x 600mm

• Display Type
• Other, Digital Meter

• Features
• Corrosion Resistance, Easy Maintenance, High Durability

• Frequency (MHz)
• 50 Hz

• IP Rating
• Other, IP55

• Material
• Other, Mild Steel (MS)

• Maximum Output Current
• 1200A

• Operating Voltage
• 415V AC

• Panel Type
• Floor Mounted

• Product Type
• Other, VDF Panel

• Protection Class
• Class I

• Protection Level
• IP55

• Rated Current
• 1000A

• Rated Insulation Voltage
• 690V

• Rated Operation Voltage
• 415V

• Rated Voltage
• 415V AC

• Standard
• IEC 61439

• Surface Color
• Other, Grey

• Surface Finish
• Powder Coated

• Thickness
• 2 mm

• Way
• Multiway

• Application
• Industrial / Commercial Power Distribution

• Base Material
• Mild Steel

• Cabinet Material
• Mild Steel (Powder Coated)

• Components
• Incoming MCCB, Outgoing MCB, Busbars, Wiring, Indicator Lights

• Connectivity Type
• Hardwired

• Control System
• Manual

• Cooling System
• Natural Air Ventilation

• Cover Material
• Other, Powder-coated Steel

• Current Rating
• Up to 630A

• Dimension (L*W*H)
• 1200 x 600 x 300 mm (Customizable)

• Display Type
• Other, LED Indicator

• Features
• Corrosion Resistance, Robust Design, Modular Construction

• Frequency (MHz)
• 50 Hz

• IP Rating
• Ip54

• Material
• Other, Mild Steel (MS)

• Maximum Output Current
• 630A

• Operating Voltage
• 380-415 V AC

• Panel Type
• Wall Mounted / Floor Standing

• Product Type
• Other, Busbar Distribution Panel

• Protection Class
• Class I

• Protection Level
• IP54

• Rated Current
• Up to 630A

• Rated Insulation Voltage
• 660 V

• Rated Operation Voltage
• 415 V

• Rated Voltage
• 415 V AC

• Standard
• IEC 61439 / IS 8623

• Surface Color
• Other, Grey

• Surface Finish
• Powder Coated

• Thickness
• 1.6 mm

• Way
• 4 Way / Customized

• Application
• Industrial, Commercial Automation, Lighting Control

• Base Material
• Other, Mild Steel Sheet

• Cabinet Material
• Powder Coated Mild Steel

• Components
• Timer Relays, MCBs, Contactors, Indicating Lamps, Terminal Blocks

• Connectivity Type
• Cable / Busbar

• Control System
• Electromechanical/Electronic Timer Based

• Cooling System
• Natural Air Ventilation

• Cover Material
• Other, Powder Coated MS

• Current Rating
• Up to 100 A

• Dimension (L*W*H)
• As per requirement / Customizable

• Display Type
• Other, LED Indication

• Features
• Automatic Switching, Easy Installation, Trouble Free Operation

• Frequency (MHz)
• 50 Hz

• IP Rating
• Other, IP54 / IP55

• Material
• Other, Mild Steel (MS)

• Maximum Output Current
• 100 A

• Operating Voltage
• 415 V AC

• Panel Type
• Wall Mounted / Floor Mounted

• Product Type
• Other, Timer Distribution Panel

• Protection Class
• Class I

• Protection Level
• Other, IP54 / IP55

• Rated Current
• 63 A / 100 A

• Rated Insulation Voltage
• 690 V

• Rated Operation Voltage
• 415 V

• Rated Voltage
• 415 V AC

• Standard
• IEC 61439, IS 8623

• Surface Color
• Other, Grey or Customized

• Surface Finish
• Powder Coated

• Thickness
• 1.6 mm to 2 mm

• Way
• Double Door / Multi-way
