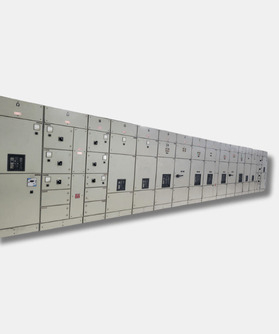

PCC Panel

Get a Price/Quote

MOQ : 1 Piece

PCC Panel Specification

Rated Insulation Voltage
660V

Connectivity Type
Hardwired

Way
Single/Double Front

Cabinet Material
Mild Steel

Rated Current
Up to 2500A

Thickness
1.6 mm to 2.0 mm

Rated Operation Voltage
415V AC

Cooling System
Natural / Forced Air

Features
Shock Proof, Corrosion Resistant, Durable

Current Rating
2500A

Control System
Manual / Automatic

Base Material
Mild Steel

Operating Voltage
415V

Panel Type
Floor Mounted

Protection Level
IP42 / IP54

Protection Class
Class I

Cover Material
Mild Steel with Powder Coating

Components
MCB, MCCB, ACB, Indicators, Busbars, Meters

Product Type
Power Control Center (PCC) Panel

Material
Mild Steel (MS)

Surface Finish
Powder Coated

Standard
IEC 61439, IS 8623

Surface Color
Grey

Rated Voltage
415V AC

Frequency (MHz)
50 Hz

Maximum Output Current
2500A

Dimension (L*W*H)
Customizable

Application
Industrial Power Distribution

IP Rating
IP42 / IP54

Display Type
Analog / Digital

Panel Door Type
Hinged With Lock

Terminal Blocks
High Grade Polyamide

Mounting Type
Floor Standing

Short Circuit Withstand Capacity
Up to 50kA for 1 sec

Type of Installation
Indoor

Enclosure Type
Dust and Vermin Proof

Wiring
Copper Flexible Wire / Cable

Ambient Temperature
-10C to +50C

Busbar Material
Electrolytic Grade Copper / Aluminium

Cable Entry
Top / Bottom

PCC Panel Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash in Advance (CID)

Supply Ability
50 Pieces Per Month

Delivery Time
07 Days

Main Domestic Market
Maharashtra

PCC Panel About

Discover the supreme quality PCC Panel, engineered for optimal industrial power distribution. With a famed reputation for reliability, this floor-standing panel supports top or bottom cable entry and endures soaring ambient temperatures from -10C to +50C. Crafted from high-grade mild steel and featuring a dust and vermin-proof, powder-coated enclosure, it withstands up to 50kA short circuits. Shock proof, corrosion-resistant, and durable, this panel boasts IEC 61439 and IS 8623 compliance. Limited stock-hurry for instant checkout! Limited time offer for manufacturers, service providers, and suppliers across India.

PCC Panel: Application, Use, and Machine Features

Our PCC Panel is extensively used for seamless industrial power distribution, installed using a floor-mounted application method. Key features include supreme short-circuit resilience, dual busbar materials (copper/aluminium), and an advanced, lockable hinged door system. The enclosure's dust and vermin-proof nature, combined with shock-proof, corrosion-resistant construction, ensures durability and safety. Its flexibility accommodates copper flexible wiring, manual or automatic controls, and analog or digital displays, making it ideal for varied industrial machinery requirements.

PCC Panel Supply Rate, Delivery, and Packaging

Stock is ready for immediate supply, enabling swift delivery across India's main domestic market. Competitive rate arrangements ensure affordability for bulk orders. Our packaging details adhere to supreme standards-we provide robust, customized packing for each panel, safeguarding against transit damage. With limited stock and efficient delivery processes, you can rely on a steady supply of famed PCC Panels, ensuring uninterrupted industrial power distribution.

FAQ's of PCC Panel:

Q: How is the PCC Panel installed and what are its mounting options?

A: The PCC Panel is designed for indoor installation and is primarily available as a floor-standing, floor-mounted unit. It is customizable for single or double front ways to suit diverse industrial setups.

Q: What benefits does using electrolytic grade copper or aluminium busbars provide?

A: Electrolytic grade copper or aluminium busbars ensure superior electrical conductivity, increased reliability, and reduced energy losses, contributing to efficient and safe power distribution in industrial environments.

Q: When can I expect the delivery of my PCC Panel after placing an order?

A: With stock ready for dispatch, delivery timelines are minimal. Orders from within India's domestic market are processed swiftly, ensuring prompt supply and installation.

Q: Where can this PCC Panel be best utilized?

A: The PCC Panel excels in industrial settings where robust, dust and vermin-proof, shock and corrosion-resistant power distribution is essential. It supports a wide range of applications in manufacturing plants and industrial facilities.

Q: What features make the PCC Panel durable and safe for industrial use?

A: Key features include a powder-coated mild steel enclosure, IP42/IP54 protection, shock and corrosion resistance, lockable hinged doors, and high-grade polyamide terminal blocks, ensuring both durability and supreme safety.

Q: How is the PCC Panel packaged to prevent damage during transit?

A: Each PCC Panel is packed with high-grade protective materials and customized solutions to prevent shock, corrosion, and mechanical damage, maintaining integrity during storage and delivery.
